Roof control signaling indicates a defect in the main waterproofing layer.

A system designed to detect water on the safety waterproofing layer from the interior, in cases of a defect in the main waterproofing layer.

Thanks to its transparent inspection bulb, the system allows for a visual inspection to determine if water is present on the waterproofing layer.

‍

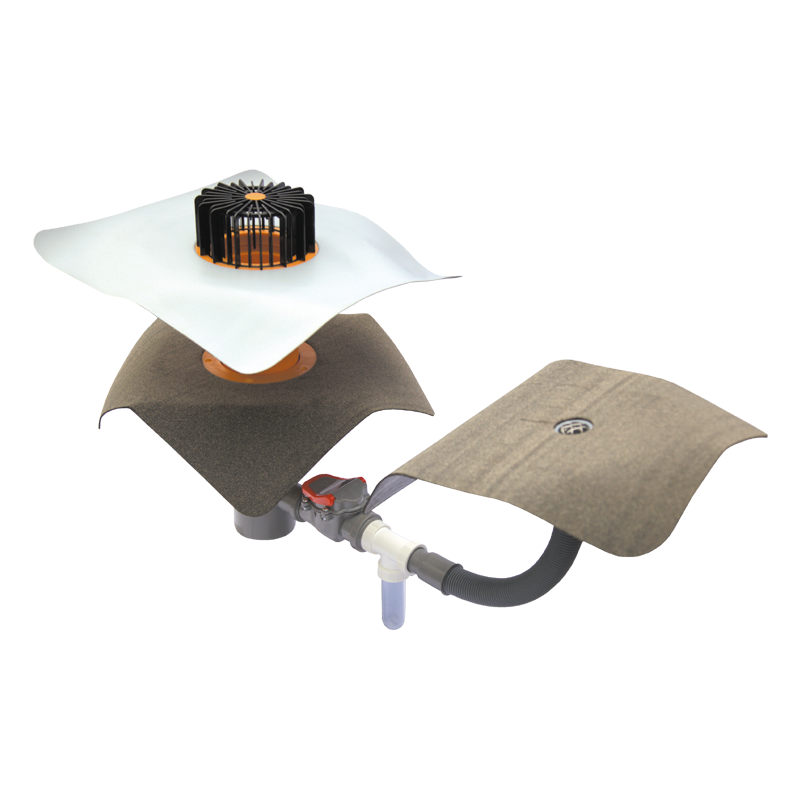

The image is for illustrative purposes only; the roof drain and extension are not included.

‍

INSTALLATION:

1. A branch must be installed on the main rainwater downpipe to connect the DN 50 pipe.
2. Prepare an 80 mm diameter hole in the ceiling support structure near the main rainwater drain.
3. Connect the integrated sleeve of the outlet for safety drainage to the asphalt vapor barrier membrane.
4. Connect the control signaling system safety outlet pipe to the branch on the main drain.

‍
